tSort3D is a high-density robotic putwall that increases your sortation destinations by up to 10x

hexagon-background-full



The Smartest Way to Multiply Your Sortation Destinations

10
x

Sortation Destinations

550
+

tSort3Ds Installed

365

Support

Capacity

Multiply Your Sortation Destinations and Batch Capacity

tSort3D uses robotic cranes within high-capacity putwalls to consolidate sorted orders. This setup increases sortation destinations by up to 10× and supports batch picks of 6,000+ orders per wave. The result: higher throughput with less manual labor and space.

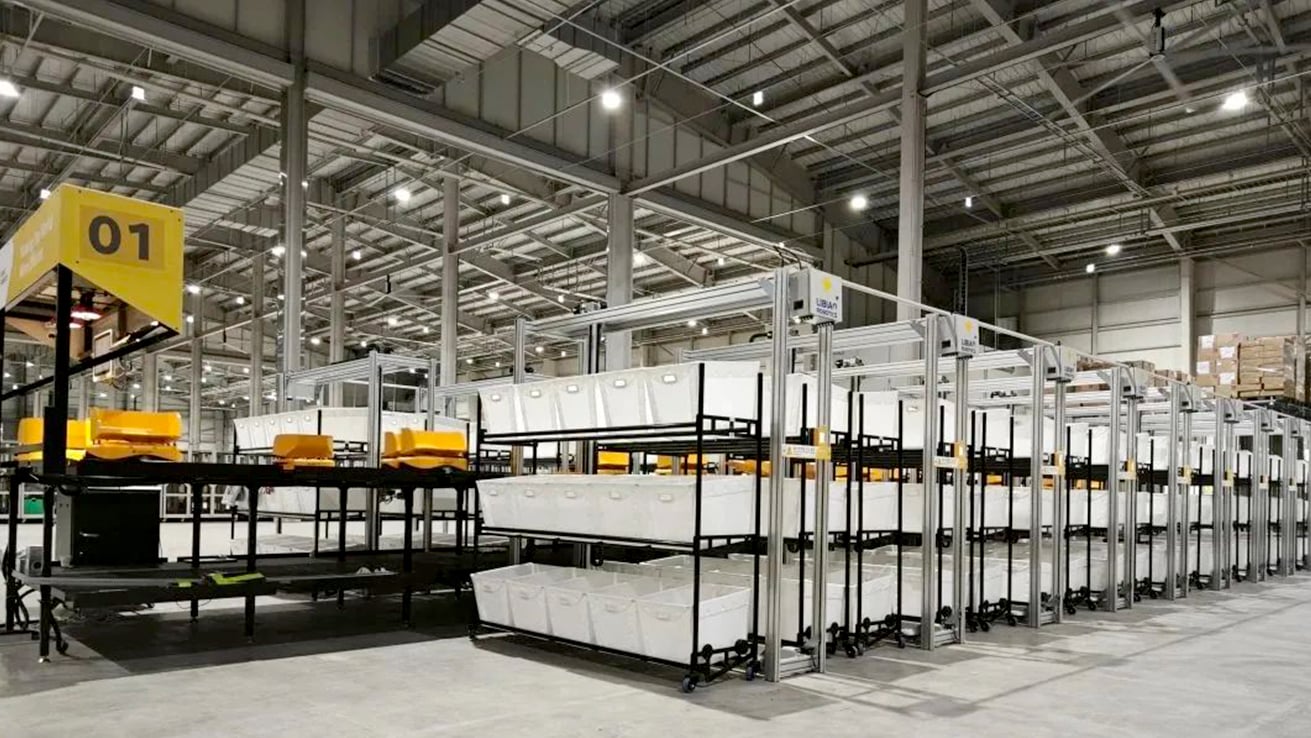

tSort3D Auto Consolidation Putwall

Modularity

Modular Design That Fits Your Sorting Process

With a modular design, tSort3D integrates easily with tSort and other automated or manual sorting systems. Completed order containers can be removed individually or entire mobile putwalls can be moved to packing at once, allowing flexible operations.

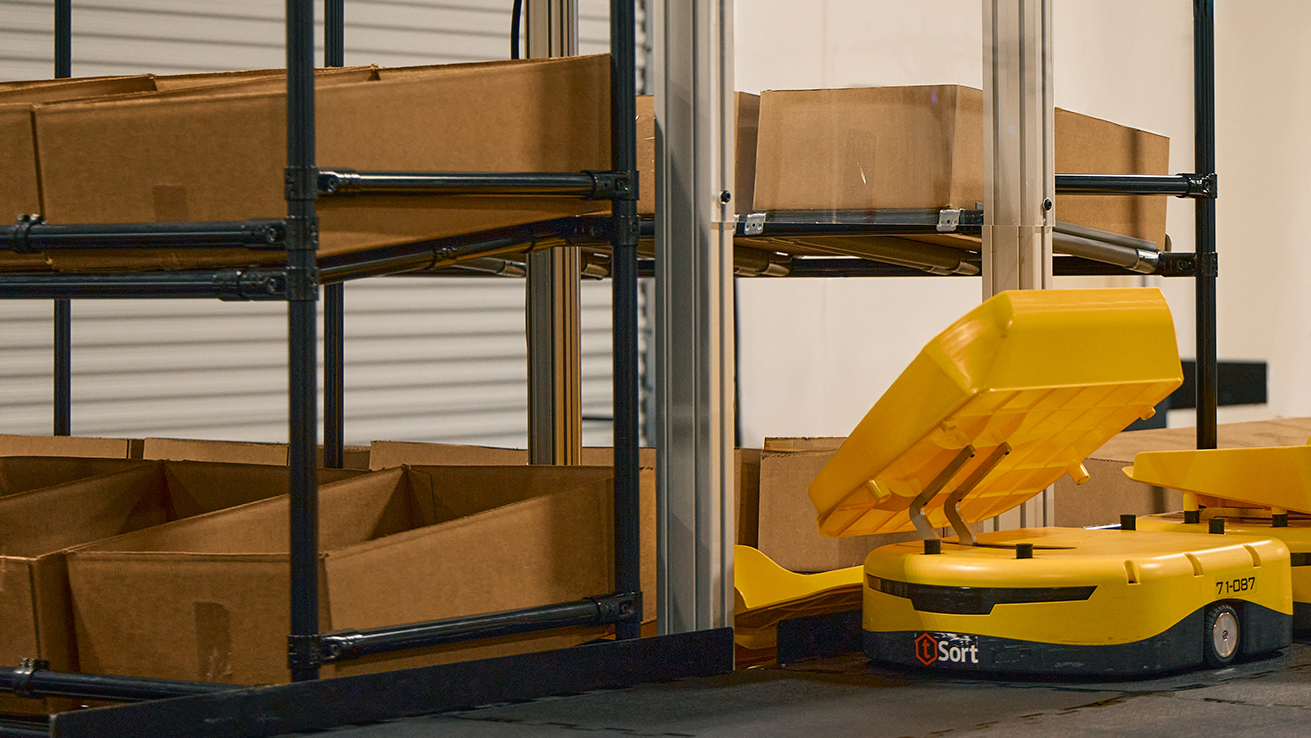

tSort3D automated putwall

Versatility

Handle Diverse Products

tSort3D can process round, cylindrical, and other challenging product shapes that other systems cannot handle. It also detects missing containers, overfill conditions, and items that fail to reach their destination, ensuring accurate fulfillment.

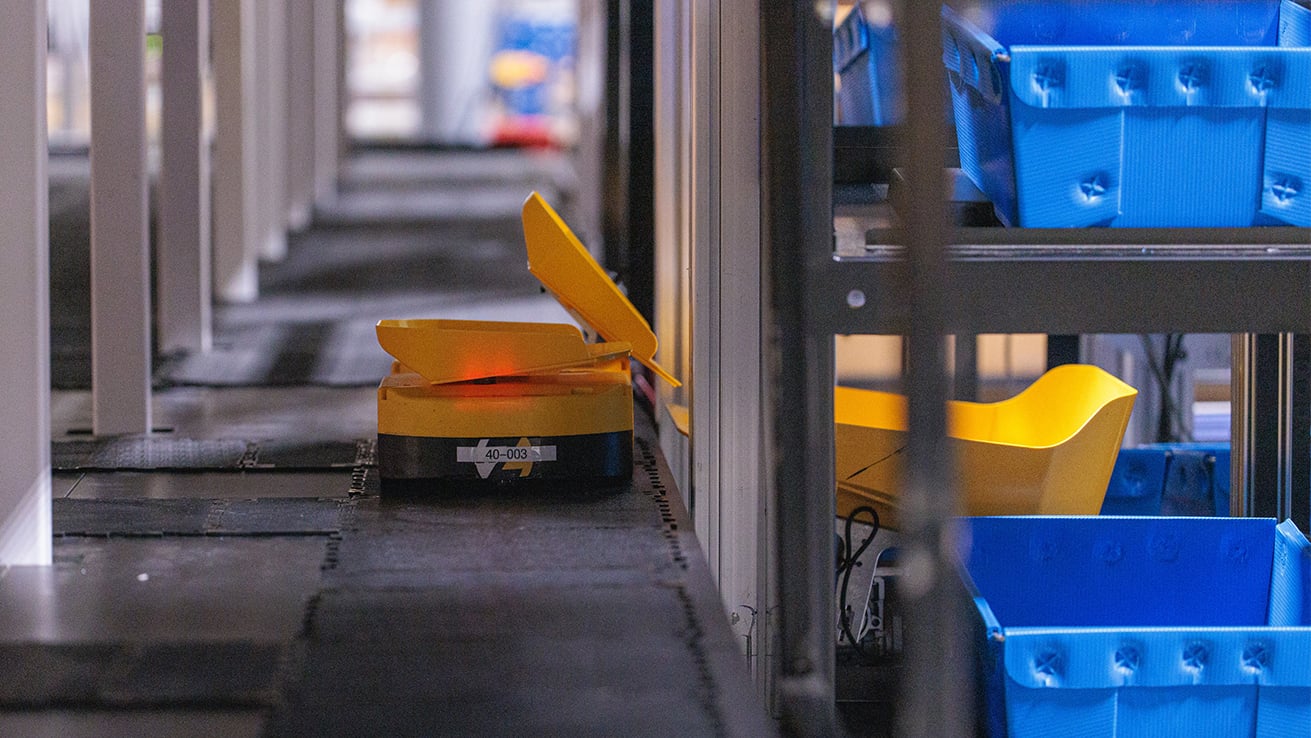

tSort3D putwall automation

Density

Fulfill More in Less Space

By integrating tSort3D with your tSort system, you can maximize order fulfillment while minimizing floor space and manual handling. Its design allows you to induct orders from anywhere in the system, eliminating costly routing of donor containers.

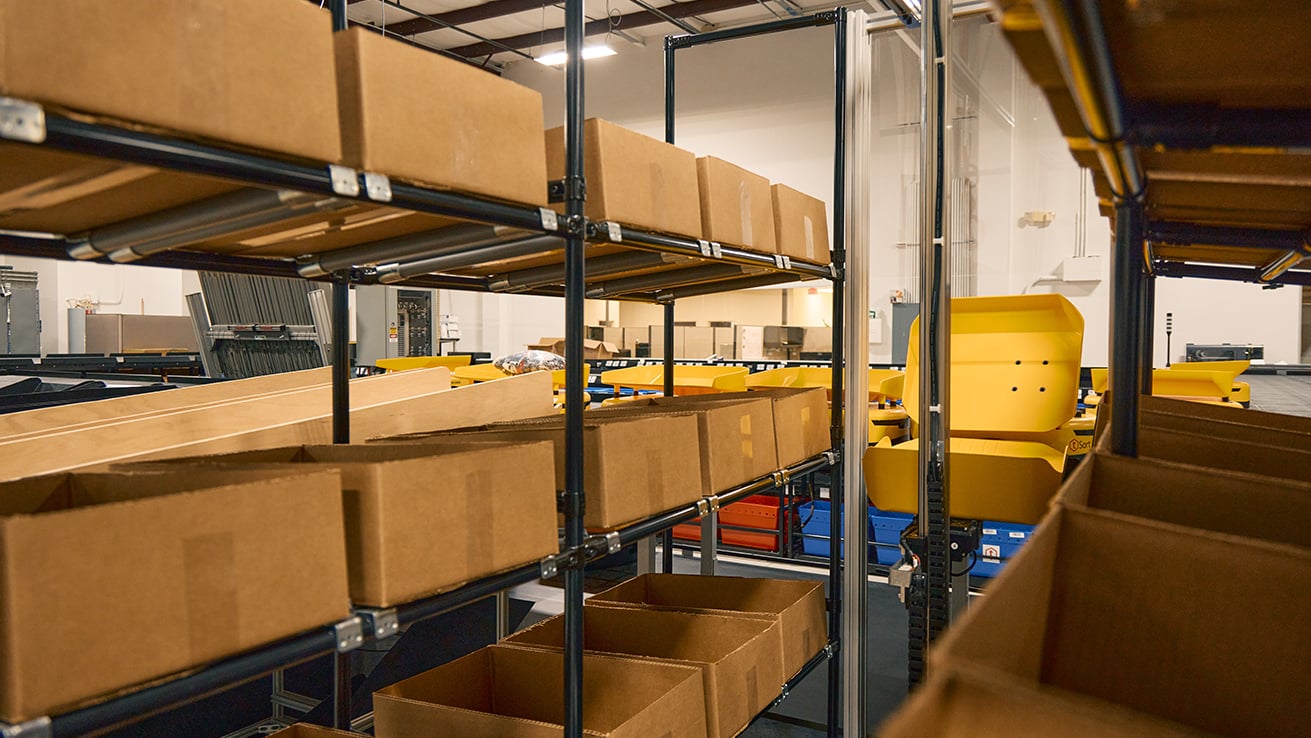

tSort3D putwall consolidation

Efficiency

Reduce Manual Labor and Operating Costs

tSort3D outperforms other putwall technologies in labor efficiency and wave capacity. This leads to lower capital and operating expenses while boosting operational productivity.

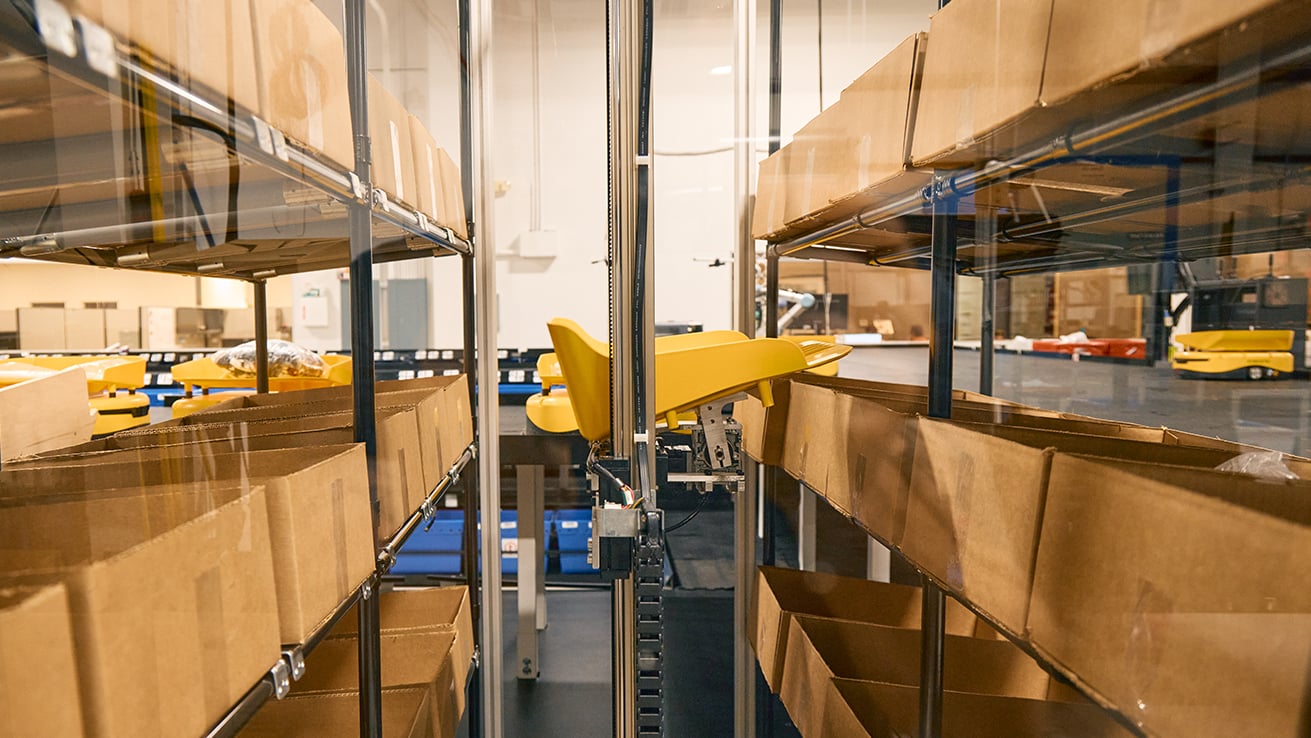

tSort3D order consolidation
tSort3D Specifications
Specification Metric
Length
8.3 ft (2.5 m)
Width
25 in (635 mm)
Height
7.5 ft (2.2 mm)
Load Capacity
11 lbs (5 kg)
Max Product Size
16 x 13 x 13 in (406 x 330 x 330 mm)
Crane Max Speed
4.9 ft/s (1.5 m/s)
Sorting Rate
450 UPH per module

High-Density Putwall That Fits Any Facility

tSort3D is a high-density, robotic putwall that's easy to adopt. It’s ideal for small businesses starting their automation journey or enterprises looking for a flexible, space-saving solution to scale order fulfillment and boost throughput without major infrastructure changes.

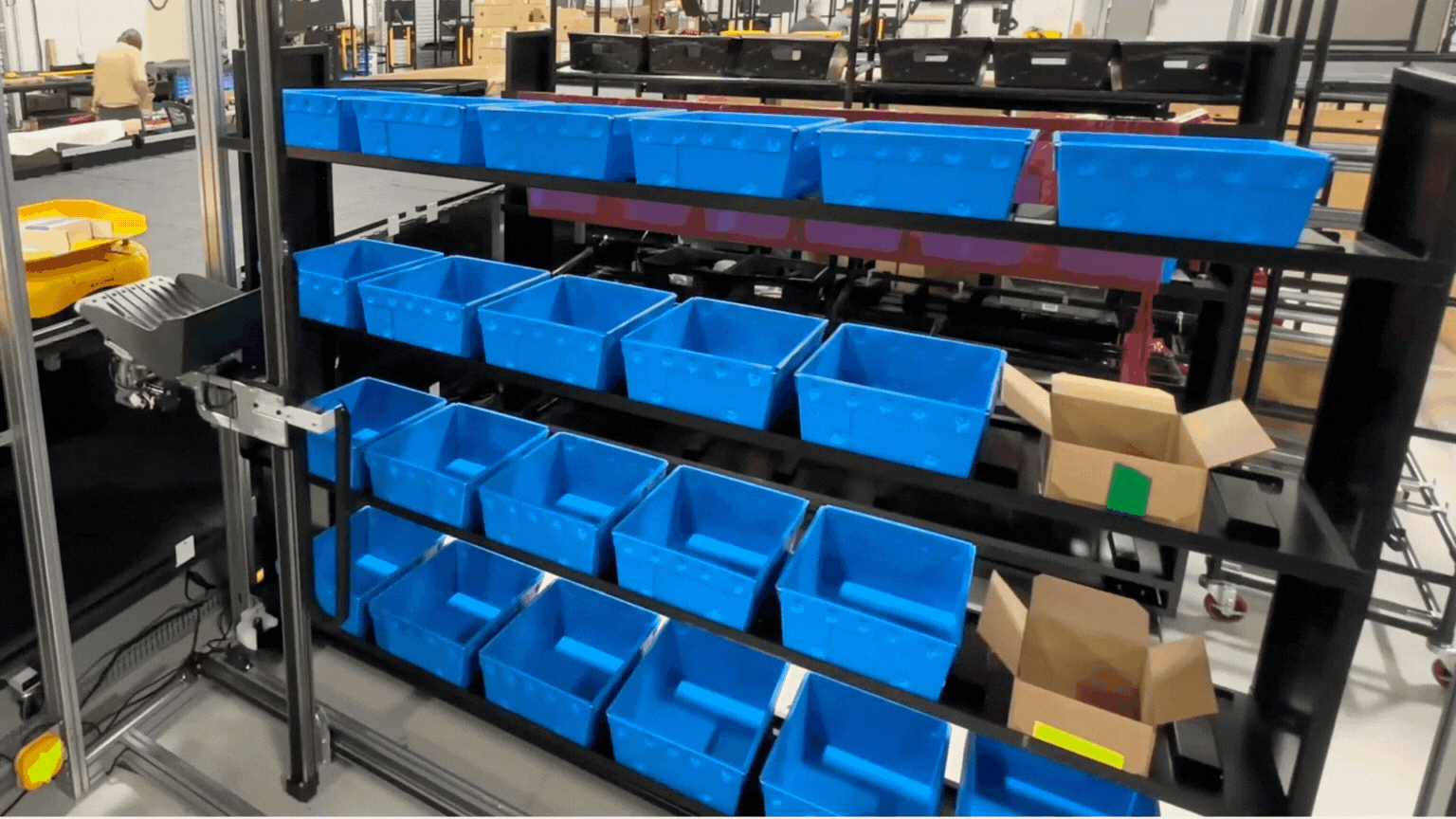

tSort3D robotic putwall

Smart Fulfillment for Every Industry

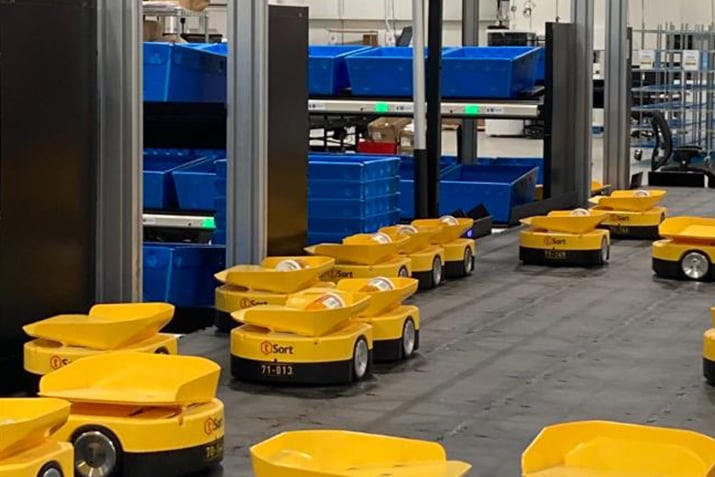

tSort3D Robotic Automation

Healthcare

Ensure reliable, tracked sorting for critical medical supplies and medications to support patient safety and operational efficiency

tSortLift automated putwall

3PL

Scale order fulfillment for single or multi-client facilities with greater speed, accuracy, and flexibility

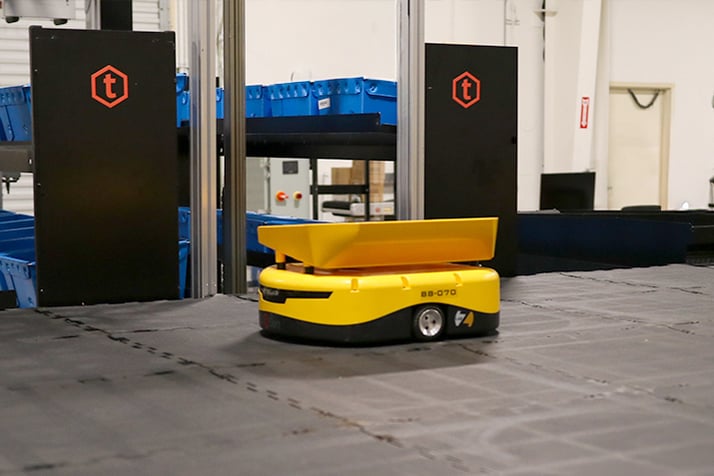

tSort3D Robotic Putwall

Post & Parcel

Streamline sorting and transport, accelerating parcel handling while reducing manual strain on operations

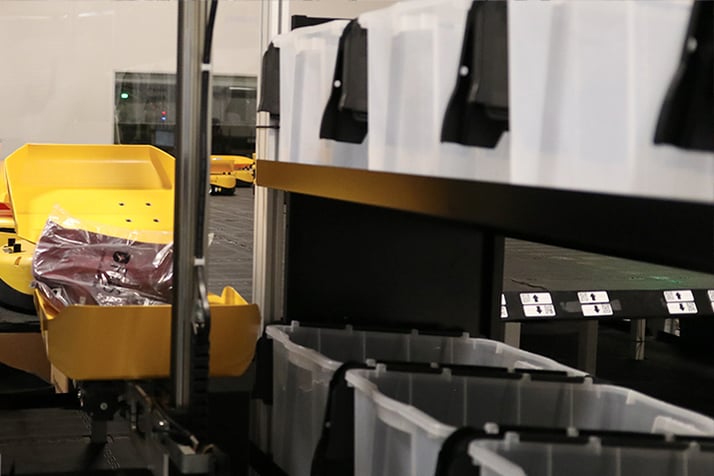

tSort3D Robotic Consolidation Putwall

E-commerce

Boost throughput and accuracy to handle high order volumes and dynamic fulfillment demands

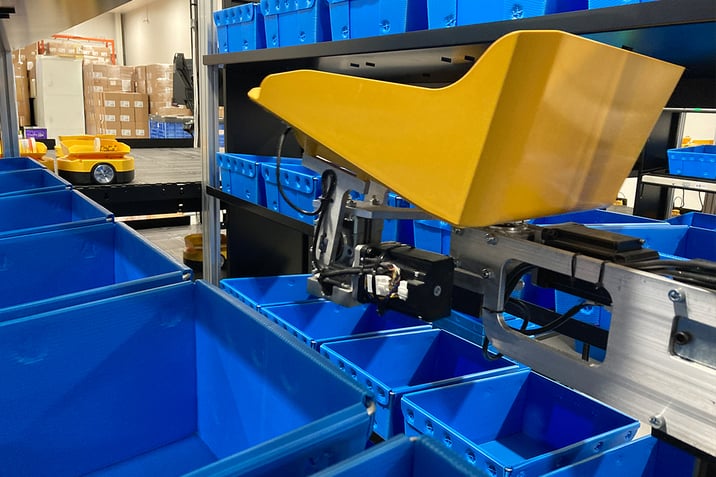

tSort3D_fulfillment

Grocery

Gain accurate, efficient picking of perishable and varied items, helping grocers meet tight delivery windows

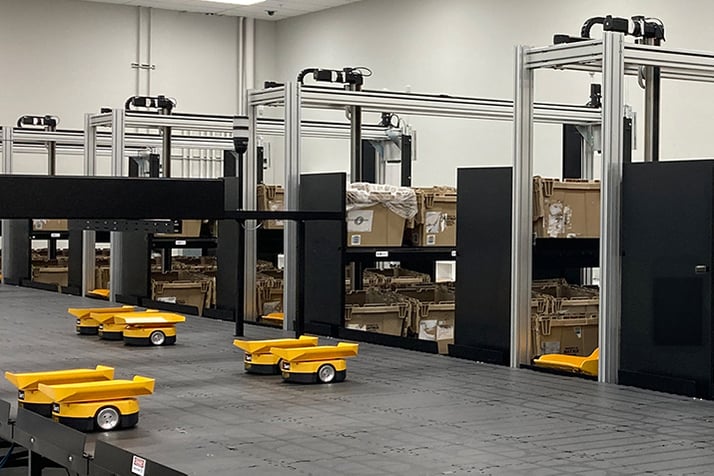

tSort3D Robotic Warehouse Putwall

Retail

Streamline fulfillment to match your replenishment needs, improving shipping density and shelf restocking

Start Your Journey Toward Smarter Sortation
